| MOQ: | 5 Pieces |
| prezzo: | $0.40 - $35.00 / Piece |
| imballaggio standard: | Plywood Case: 1500 x 1000 x 1000mm (Max.) 20 feet container: 25 tons (Max.) |
| Periodo di consegna: | It depends on the quantity to be ordered. |
| metodo di pagamento: | by T/T or L/C,Western Union |
| Capacità di approvvigionamento: | 100,000.00 |
| Attribute | Value |
|---|---|
| Product Name | Titanium Tube |
| Material | Titanium |
| Standard | ASTM B338 |
| Size | Customize |
| Density | 4.54 g/cm3 |
| Advantage | High Performance |
| Application | Industrial, Chemical Industry |
| Appearance | Silvery |

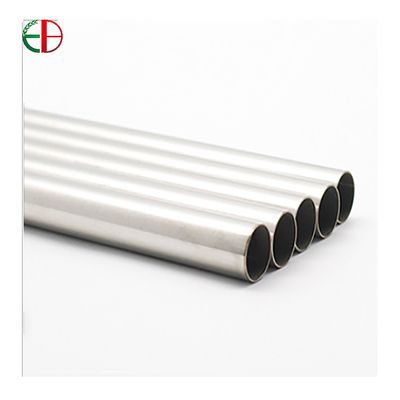

The titanium seamless tube is manufactured from hollow billet through cold drawing or cold reducing processes, maintaining a continuous periphery throughout all manufacturing stages. Titanium welded tubes are produced from annealed, flat-rolled plates using automatic arc-welding or other welding techniques.
Applications include:
| Grade | Fe% | C% | N% | H% | O% | Al% | V% | Mo% | Ni% | Pd% | Ti |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Gr1 | 0.2 | 0.08 | 0.03 | 0.015 | 0.18 | -- | -- | -- | -- | -- | BAL. |
| Gr2 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | -- | -- | -- | BAL. |
| Gr3 | 0.3 | 0.08 | 0.05 | 0.015 | 0.35 | -- | -- | -- | -- | -- | BAL. |
| Gr4 | 0.3 | 0.08 | 0.05 | 0.015 | 0.4 | -- | -- | -- | -- | -- | BAL. |
| Gr5 | 0.25 | 0.08 | 0.03 | 0.015 | 0.02 | 5.5 - 6.75 | 3.5 - 4.5 | -- | -- | -- | BAL. |
| Gr7 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | -- | -- | 0.12 - 0.25 | BAL. |
| Gr9 | 0.25 | 0.08 | 0.03 | 0.015 | 0.15 | 2.5 - 3.3 | 2.0 - 3.0 | -- | -- | -- | BAL. |
| Gr12 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | 0.2 - 0.4 | 0.6 - 0.9 | -- | BAL. |
| Gr23 | 0.3 | 0.08 | 0.03 | 0.015 | 0.13 | 5.5 - 6.75 | -- | -- | -- | -- | BAL. |
